DXF nesting for CNC cutting

Import parts, set your sheets, calculate the layout, export to production — for metal, wood, textiles, fibre cement or any other sheet material.

Request beta access See features

Laser · waterjet · plasma · oxy-fuel · router · Windows desktop software

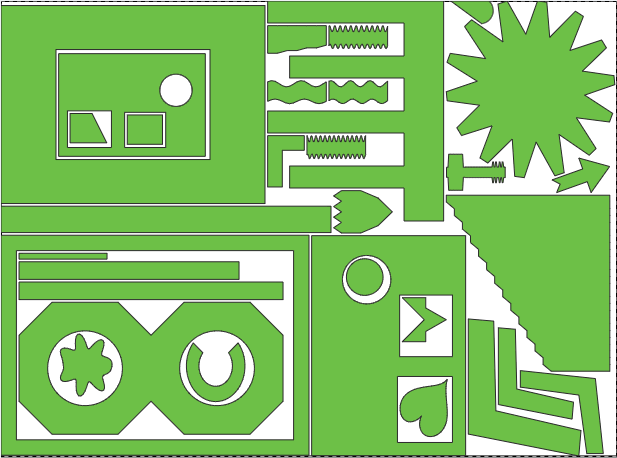

A nesting result in PSLNest: parts of many shapes placed on a sheet, with parts inside the openings of larger parts.
A real nesting result from PSLNest, including parts nested inside other parts.

PSLNest is nesting software for CNC cutting on Windows. You import DXF files, set quantities and the sheets you have, and the program calculates the layout. You can still adjust the result by hand. A finished job produces production files and a job report, and a usable offcut at the edge of a sheet can be saved and reused later.

Kerf width, tool margin, material and thickness are taken into account. The calculation always tells you what it did and what could not be placed.

Any sheet material, any cutting process

If your parts are drawn as DXF and cut from sheets, PSLNest can nest them.

Materials

  • Steel and stainless
  • Aluminium
  • Wood and board
  • Plastics
  • Textiles and leather
  • Fibre cement
  • Composites

Cutting processes

  • Laser
  • Waterjet
  • Plasma
  • Oxy-fuel
  • CNC router
  • Knife cutting

How it works

  1. 1

    Import parts

    Bring in your parts as DXF files and set a quantity for each.

  2. 2

    Set your sheets

    Enter the sheet sizes and counts you have, with material and thickness.

  3. 3

    Calculate

    PSLNest lays out the parts and reports what it placed and what did not fit.

  4. 4

    Export

    Adjust by hand if needed, then export production files and the job report.

Features

Only what the program does today.

  • DXF import

    Parts come in as DXF files, each with its own quantity.

  • Multiple sheet sizes

    One job can use several sheet sizes and several sheets of each.

  • Material and thickness

    When set on both parts and sheets, different materials are never mixed.

  • Kerf and tool margin

    Cutting width and tool margin are part of every layout.

  • Rotation control

    Rotation is limited to the angle step you choose.

  • Manual adjustment

    Move, snap and rotate parts by hand after the calculation.

  • Offcut recovery

    Cut off the unused part of a sheet and save it as a new sheet.

  • Export and job report

    Production files, and a job report you can preview as PDF before saving or printing.

  • Saved jobs

    A saved job keeps the parts, sheets, settings and layout together.

  • Calculation report

    Every result comes with a report and warnings, such as a part that did not fit.

  • Normal and Power modes

    Power uses more processor time and memory. The result is the same.

  • English and Finnish

    The whole interface is available in both languages.

Fine-tune the result by hand

Manual adjustment

Move and rotate parts by hand after the calculation. Parts snap to sheet and part corners, move in 1 mm steps and rotate by 90°, 5° or 1°. A selection moves and rotates as one group, with undo and redo. Placements that overlap or leave the sheet are flagged, never silently accepted.

Offcut cut lines

Draw a cut line of straight segments, in whatever shape you need, to separate the unused part of a sheet, and save it for later as a new sheet. Parts too close to the line, allowing for tool width, are highlighted.

Beta

Limited testing by invitation

PSLNest is in limited testing by invitation. The trial runs for 30 days on up to two computers. Interested? Write to us and tell us briefly what you cut, from which materials and on what kind of machine.

Request beta access
Trial
30 days
Computers
Up to two
System
Windows 10 or later, 64-bit
Interface
English and Finnish
